ImageEditor

所属程序集：ZnWpf.Presentation

描述

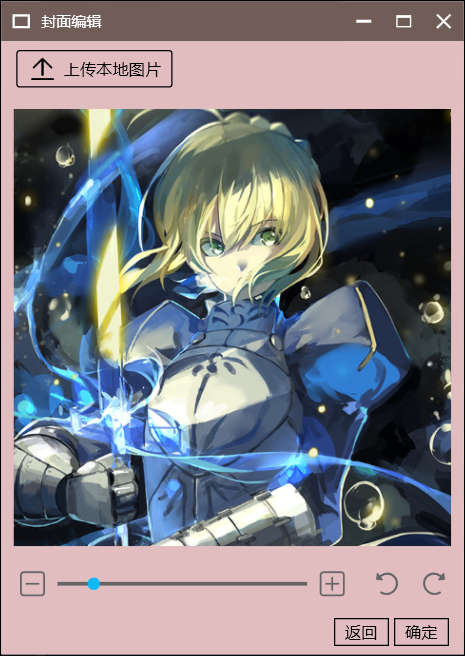

本控件为自定义控件，实现了基本的图片浏览和编辑面板

• 浏览功能：
  • 滚轮或拖动滑块进行放大缩小
  • 点击旋转按钮进行左右旋转
• 裁切功能
  • 裁切面板显示的部分并保存

注：本控件的编辑功能抽象层级较高，需具备一定的 MVVM 知识

依赖属性

---

依赖属性	类型	默认值	描述
PanelWidth	double	0	面板宽度
PanelHeight	double	0	面板高度
SrcPath	string	string.Empty	图片的完整路径
OriImage	BitmapImage	null	图片
ImageMargin	Thickness	new Thickness(0,0,0,0)	图片的坐标
ImageScale	double	1	图片缩放倍率

---

浏览功能

<controls:ImageEditor Grid.Row="1" HorizontalAlignment="Left"  VerticalAlignment="Top"
    PanelHeight="{Binding PanelHeight}" PanelWidth="{Binding PanelWidth}" OriImage="{Binding Cover}" >
</controls:ImageEditor>

public class CoverEditViewModel : ObservableObject
{
    private double panelHeight;
    public double PanelHeight
    {
        get { return panelHeight; }
        set => SetProperty(ref panelHeight, value);
    }
    private double panelWidth;
    public double PanelWidth
    {
        get { return panelWidth; }
        set => SetProperty(ref panelWidth, value);
    }
    private BitmapImage? cover;
    public BitmapImage? Cover
    {
        get { return cover; }
        set => SetProperty(ref cover, value);
    }
}

浏览图片，只需要使用 PanelHeight, PanelWidth, OriImage 三个属性即可

裁切功能

<controls:ImageEditor x:Name="ImageViewer" Grid.Row="1" HorizontalAlignment="Left"  VerticalAlignment="Top"
      PanelHeight="{Binding PanelHeight}" PanelWidth="{Binding PanelWidth}"
      SrcPath="{Binding CoverPath}" OriImage="{Binding Cover}" >

</controls:ImageEditor>

public void SaveCover()
{
    Bitmap bitmap = new Bitmap(ImageViewer.SrcPath);
    double correct = bitmap.Height / ImageViewer.OriImage.Height;
    int x = (int)(ImageViewer.ImageMargin.Left / ImageViewer.ImageScale * correct);
    int y = (int)(ImageViewer.ImageMargin.Top / ImageViewer.ImageScale * correct);
    int height = (int)(ImageViewer.PanelHeight / ImageViewer.ImageScale * correct);
    int width = (int)(ImageViewer.PanelWidth / ImageViewer.ImageScale * correct);
    var result = bitmap.Clone(new System.Drawing.Rectangle(-x, -y, width, height), System.Drawing.Imaging.PixelFormat.Format32bppArgb);
    if (result != null && DestPath != string.Empty)
    {
        result.Save(DestPath, System.Drawing.Imaging.ImageFormat.Png);
    }
}

裁切图片除 PanelHeight, PanelWidth, OriImage 三个属性外，还需提供 SrcPath
